Henneken

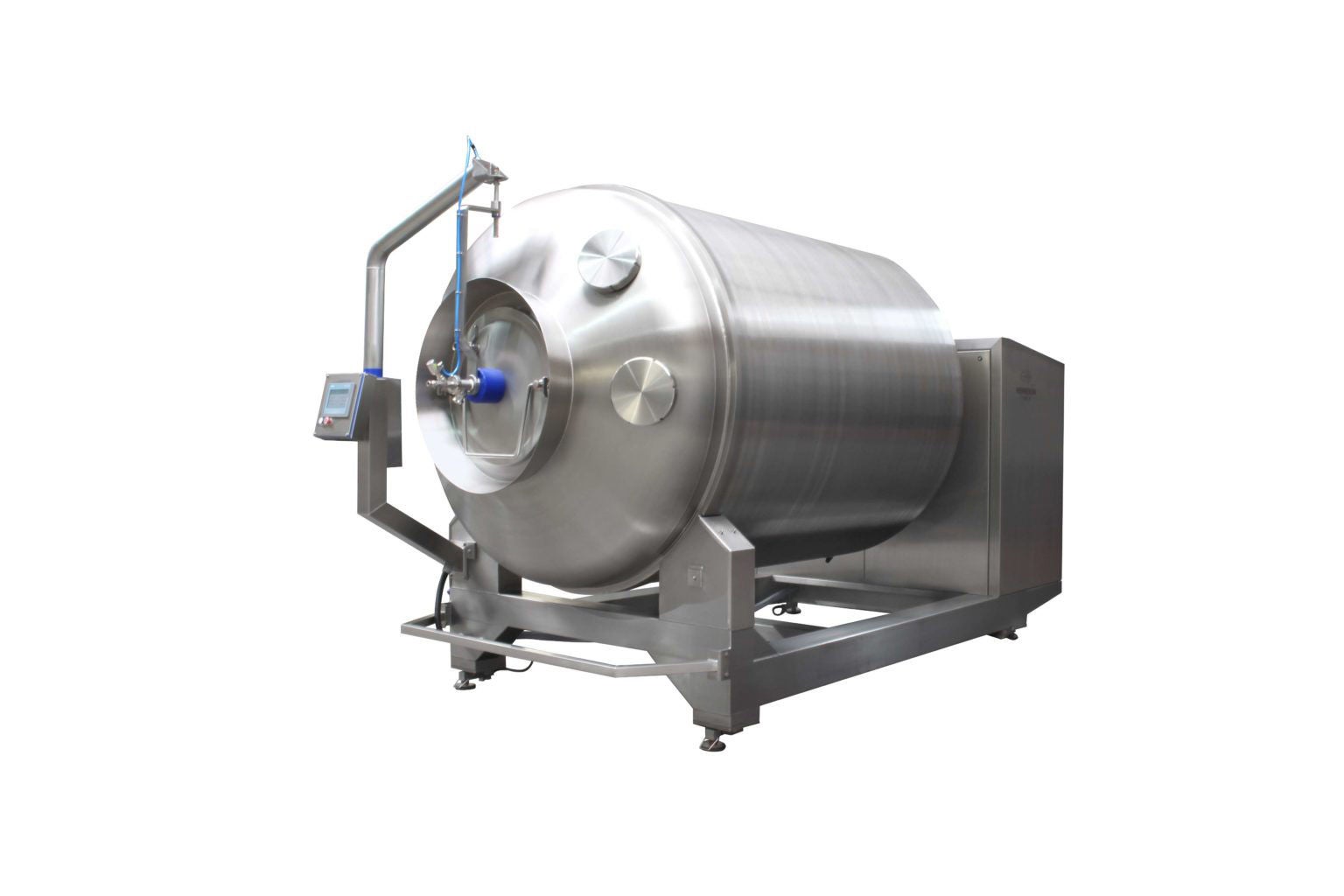

Henneken offers vacuum tumblers for the food processing industry.

Industrial Range:

• Type B: Horizontal rotating drum with a single opening.
• Type C: Horizontal rotating drum with two openings.
• Type R: Lifting and tilting system with cone.

Craft Range:

• MVT: Compact vacuum tumbler.
• CVM: Combines tumbling and mixing functions and is also suitable for salads.
• MA: Mixing/tumbling machine.

These solutions are designed to meet a wide range of food production and processing requirements.

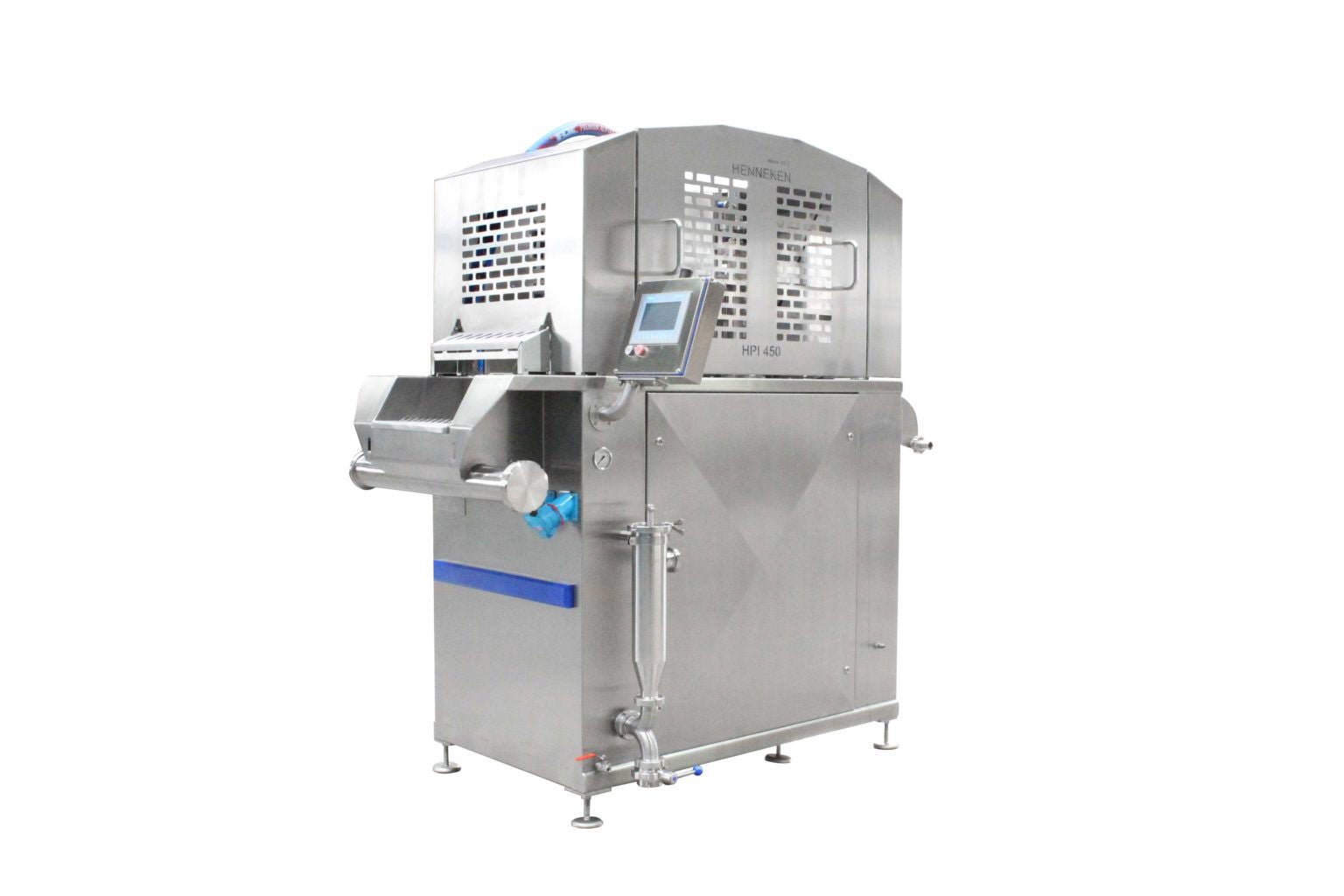

The injector HPI is available with the working width 300 mm, 350 mm, 450 mm and 650 mm.

The injectors are characterized by its robust industrial design and its ease of maintenance. It was attached importance to unproblematic accessibility to all parts. Only top quality components are built-in.

The injection is suitable for all kinds of meat with and without bones. By a special stripper with height setting it is guaranteed that no product is pressed or injected brine is pressed out. Thus the product is able to increase.

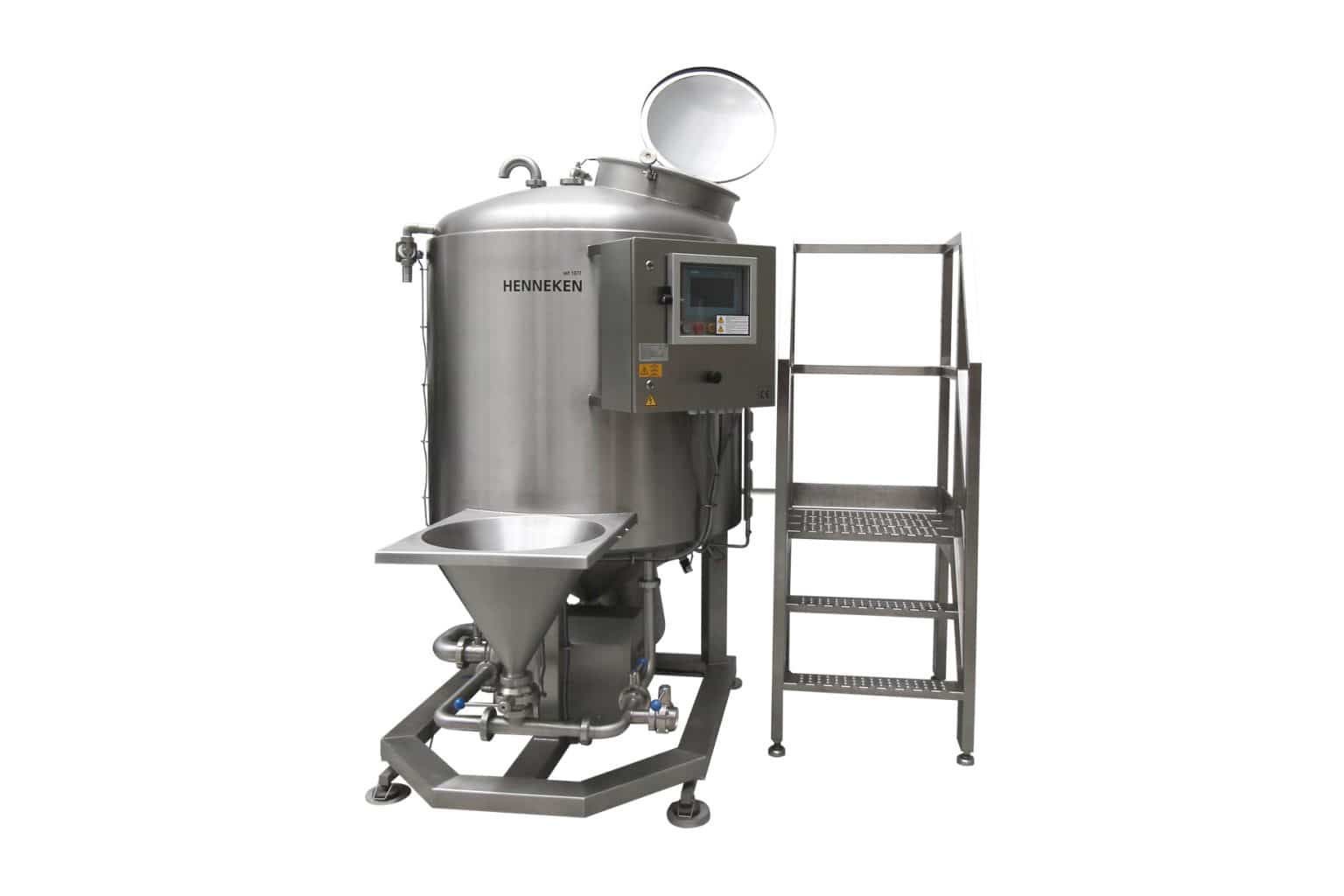

The HVM Brine Mixer uses Venturi technology to ensure the rapid and homogeneous mixing of water, powders, additives, and ice. It produces a stable, uniform, and lump-free brine while minimizing the risk of sedimentation. Available in capacities ranging from 400 to 2,000 liters, it can be integrated with production injectors and tumblers and equipped with various control, dosing, and weighing options. Its design facilitates cleaning and maintenance operations.

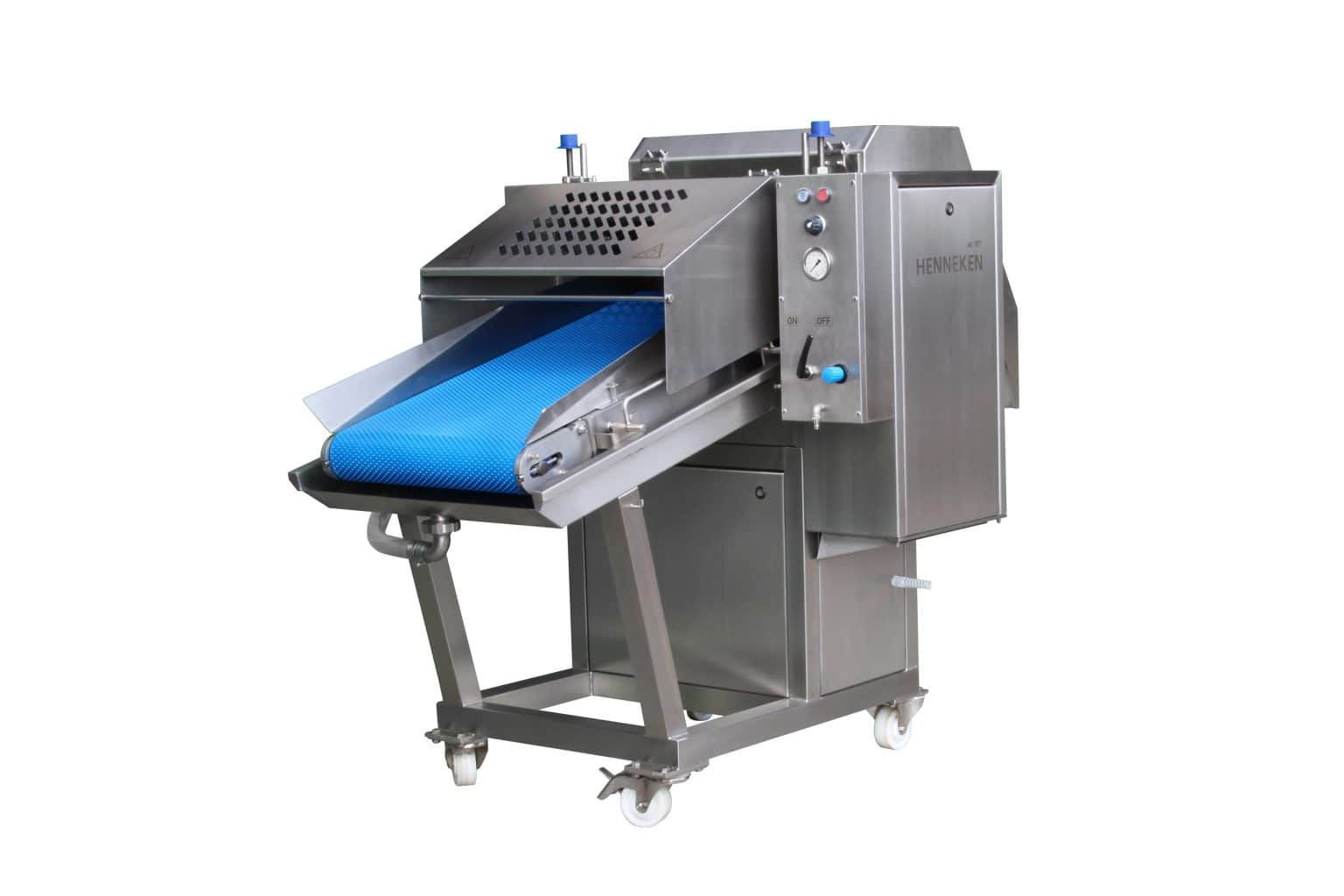

The steaker which is designed for the industry is very highpowered and sturdy. It captivates by its solid construction and is equipped with pneumatically springed rollers that adapt perfectly to any product size.

The Henneken roller steaker has got a band width of 500 mm and can be equipped with knife rolls of each 46 or alternatively 65 knives per roll. By the use of different types of knives built of especially hardened steel a wide range of products can be processed.

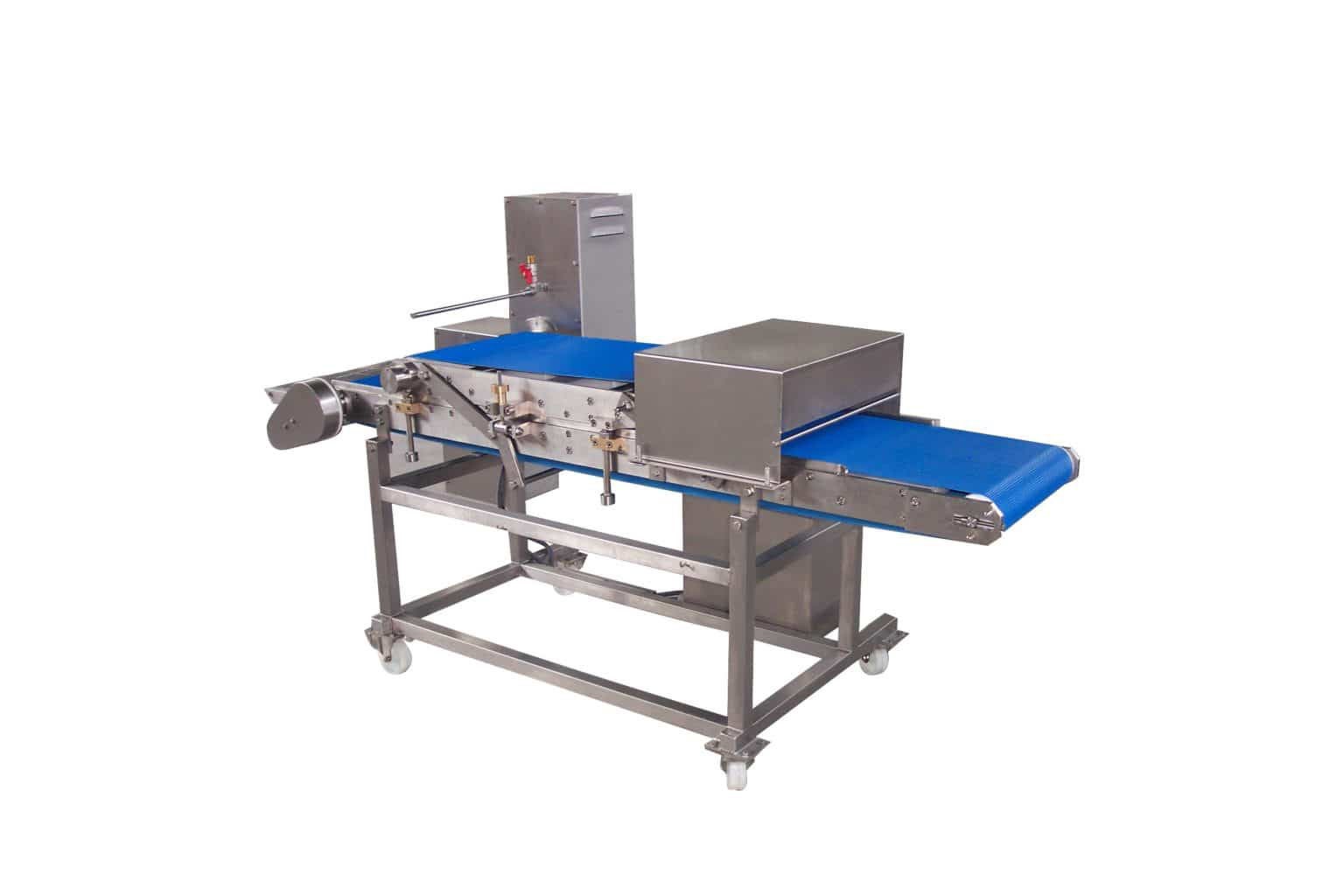

The Henneken flattener HP 415 has got a band width of 415mm. The conically in-feeding belts guarantee an optimal input of the product.

The steplessly adjustable conveying speed of 2.5 to 15m/min of the synchronized upper and lower bands allow an ideal processing of diverse products like kebab meat, schnitzel or turkey breast. The distance between the belts can be set steplessly from 6 to 130 mm. By the self-centering belts a sideslipping of the belt or product is prevented.

For an easy and fast cleansing the upper belt can be removed without effort. Both belts are easily opened. A stainless steel discharge-conveying belt enables that the product is striked off optimally. The discharge-conveying belt is turnable at the bottom of the lower belt.

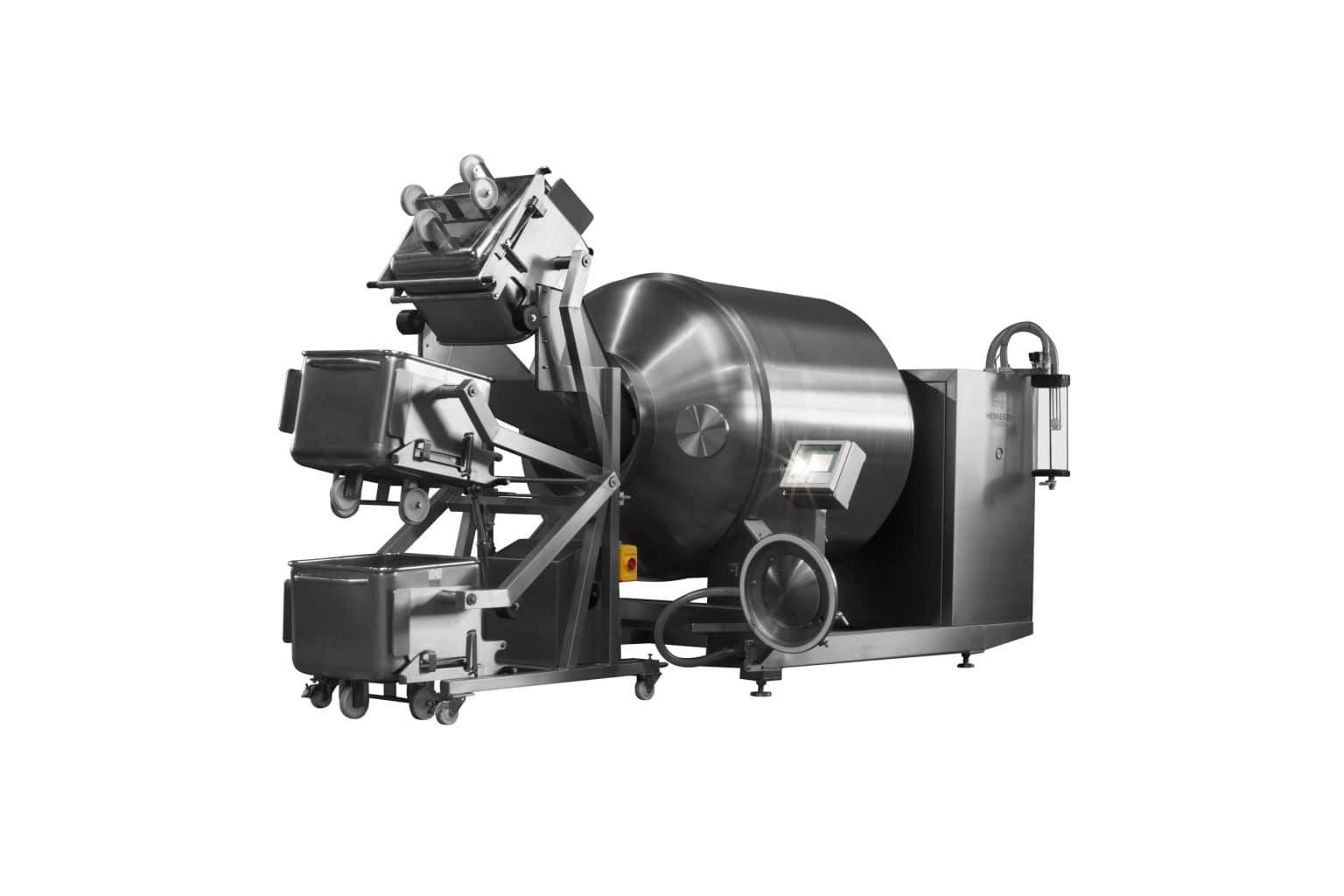

For loading vacuum tumblers, several loading solutions are available to accommodate the characteristics of each product and the specific constraints of the production process. These systems help optimize handling operations, improve process efficiency, and ensure seamless integration into any industrial environment. Multiple loading options are available to meet the specific requirements of each user.
